Thiết Bị Nâng Hút Chân Không ASVL-380

Overview

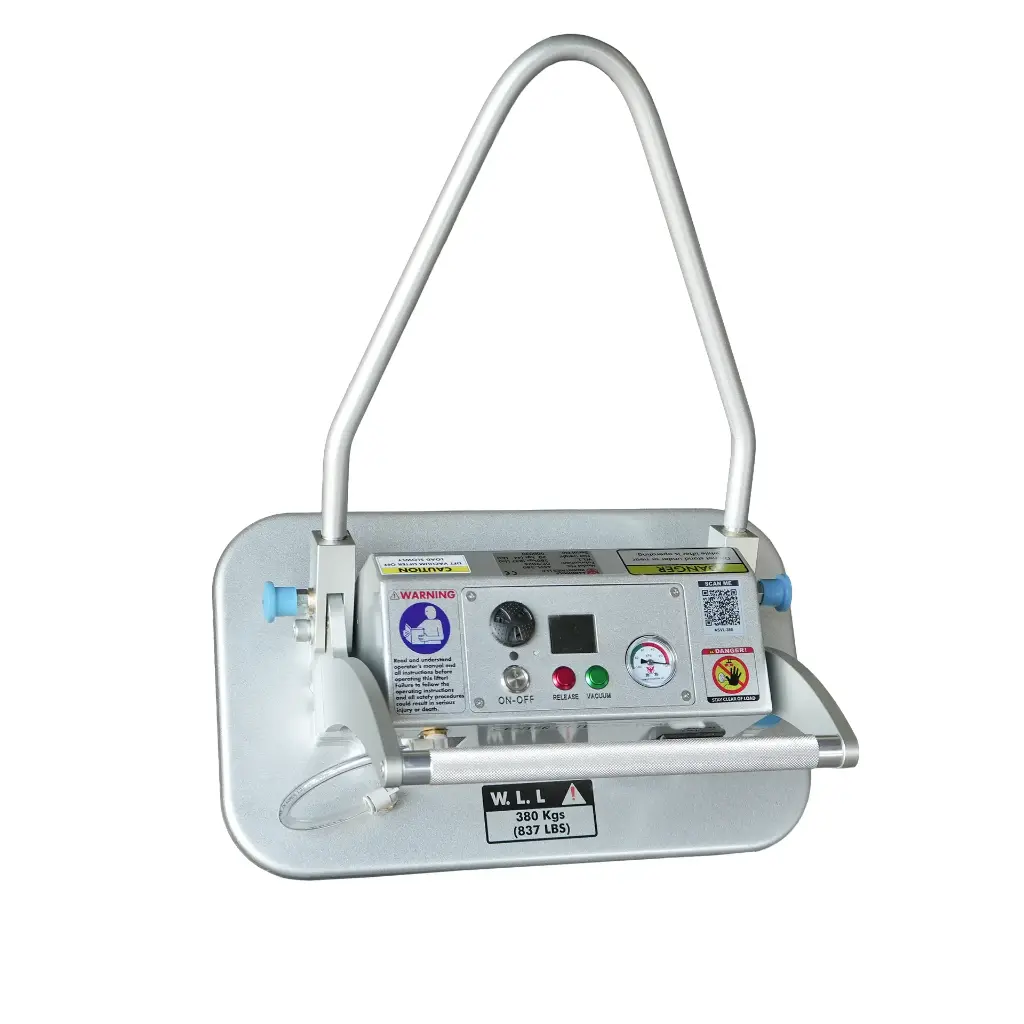

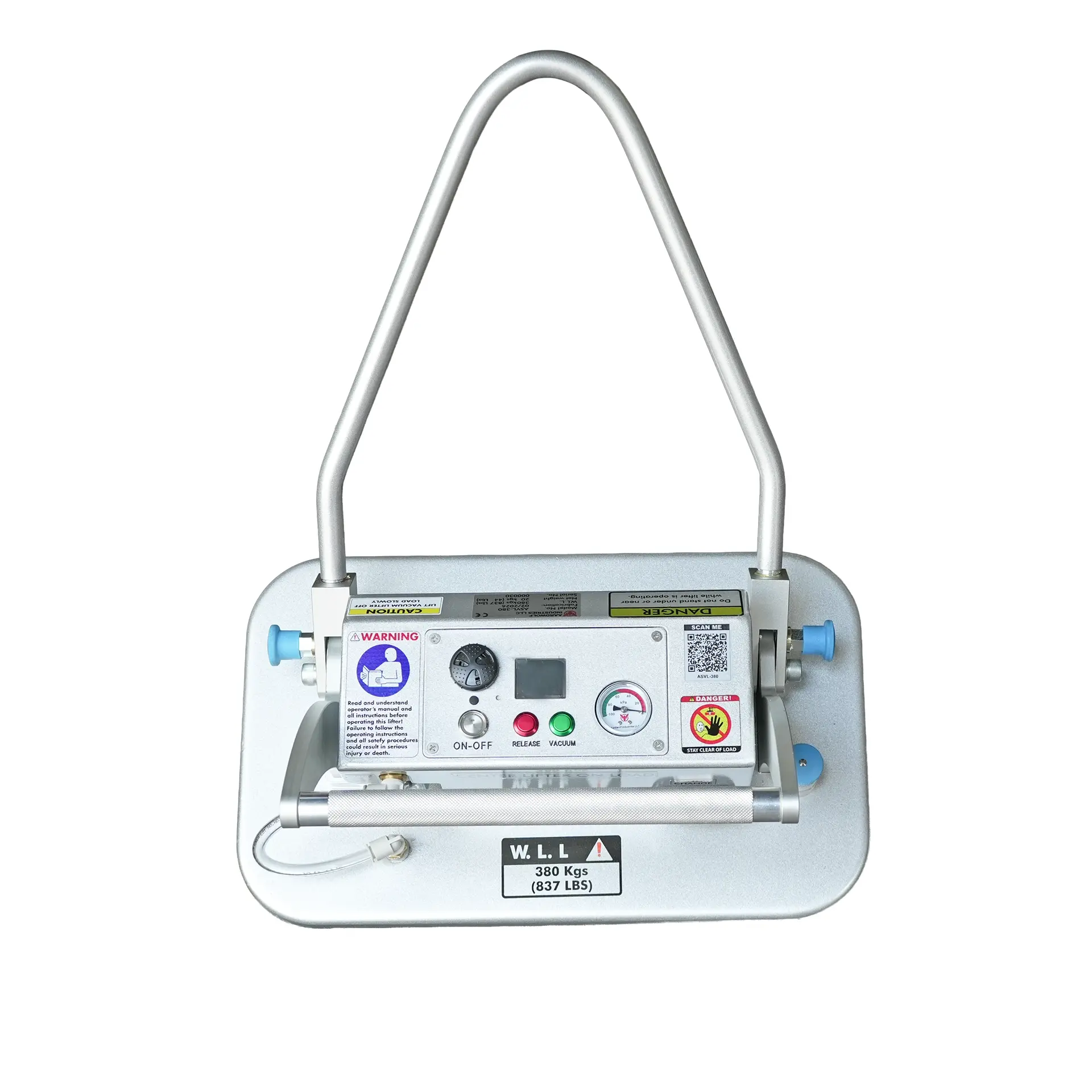

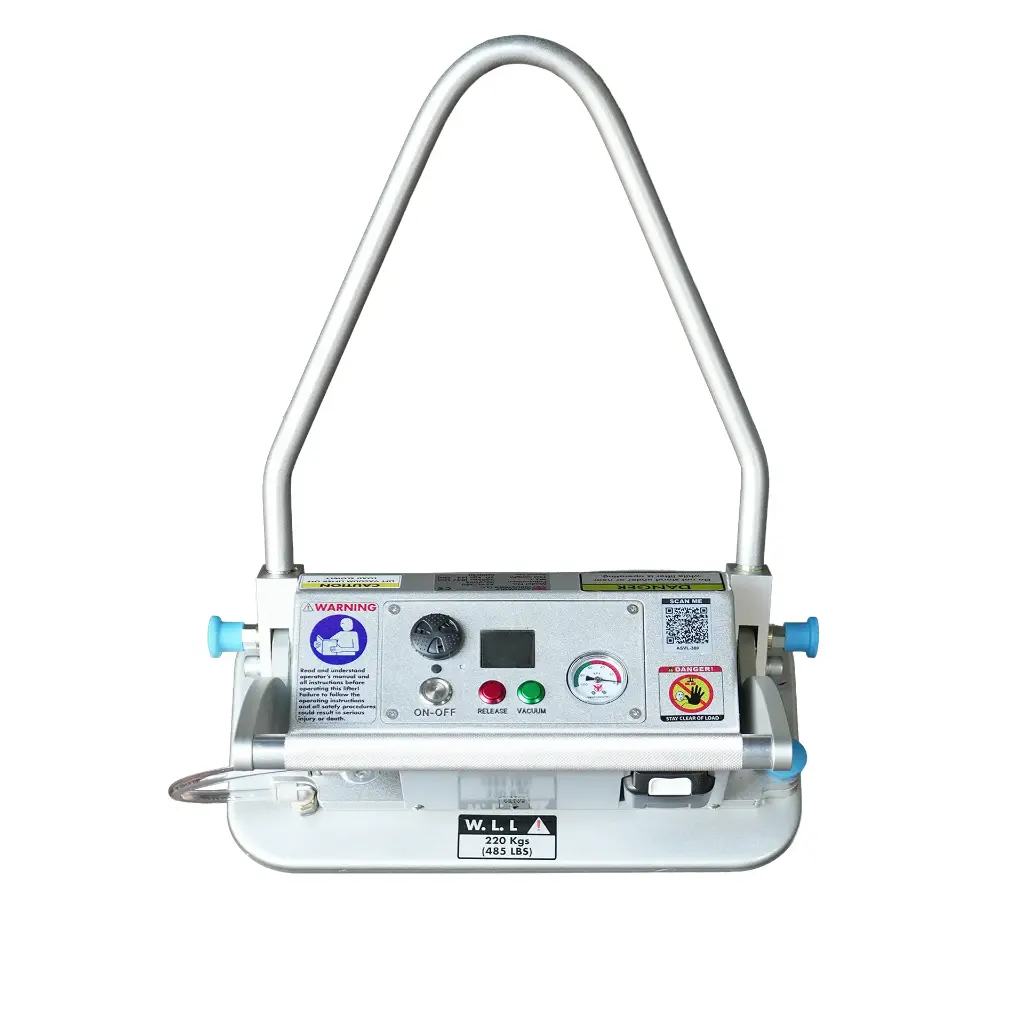

The SwiftLift ASVL-380 is a compact vacuum lifter designed for unloading and repositioning cut workpieces from bridge saw tables in stone processing environments.

This vacuum lifter allows operators to lift materials from a horizontal position, rotate them to a vertical position, and place them onto a transport frame with ease. Powered by a clip-in 12V battery with an energy-saving system, the unit can operate throughout the workday without frequent recharging. The battery can also be replaced within seconds to ensure uninterrupted operation.

How It Works

The SwiftLift uses a high-performance vacuum pump to generate suction through interchangeable vacuum pads. Once the required vacuum level is reached, the lifter securely grips the material surface.

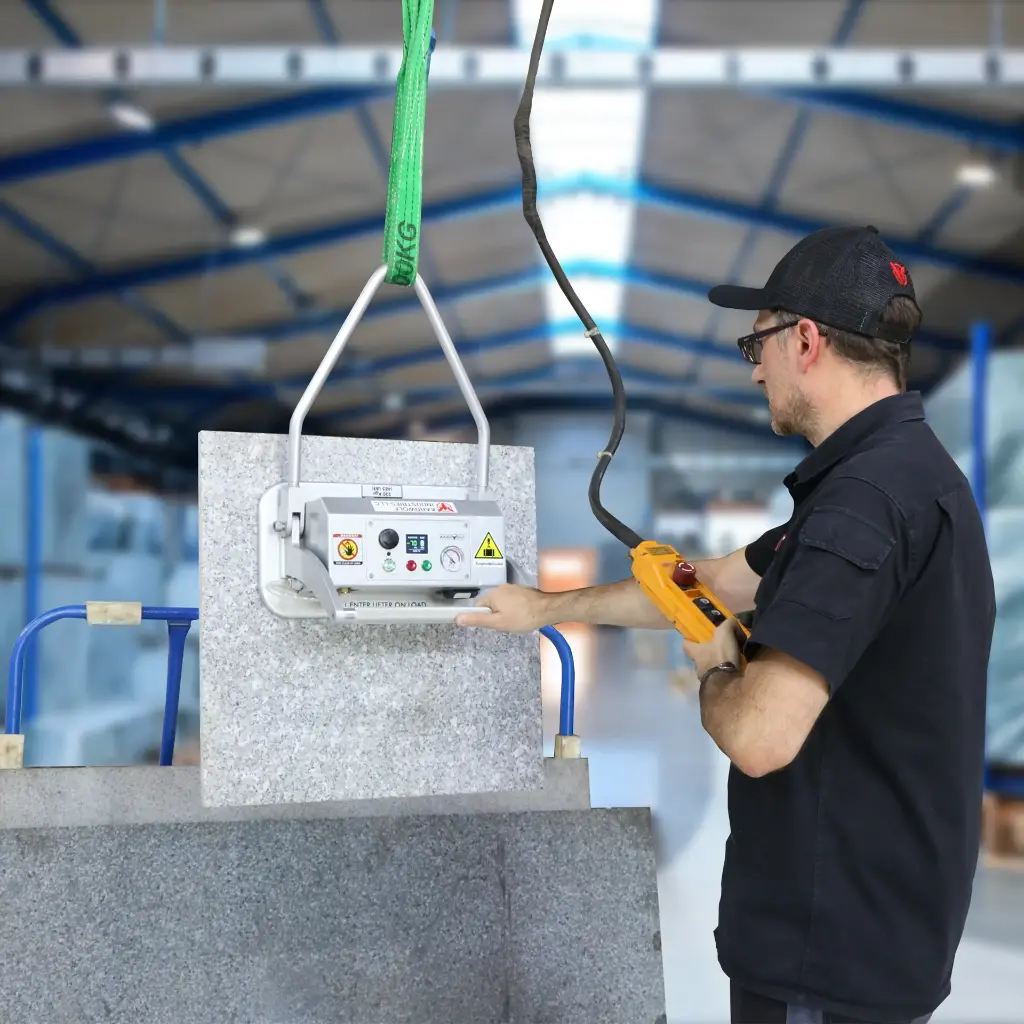

Operators can lift stone slabs or glass panels horizontally, then tilt them into a vertical position for transport or installation. The integrated control system ensures precise lifting, positioning, and release, improving both efficiency and safety in material handling.

Key Features

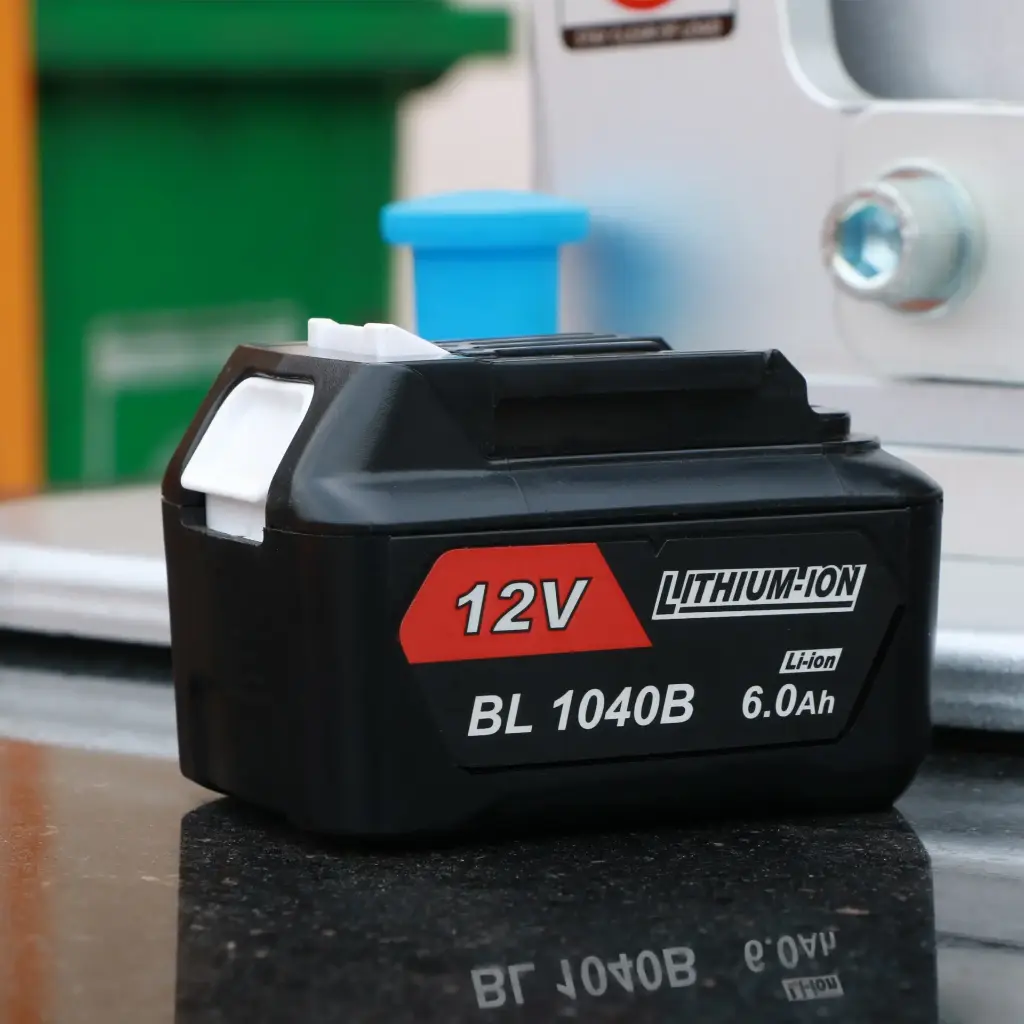

• 12V clip-in battery system: Enables cordless operation with quick battery replacement
• High-performance vacuum pump: Provides stable suction for heavy-duty material handling
• Audio and visual safety system: Ensures continuous monitoring of vacuum levels during operation
• Foam vacuum gasket compatibility: Suitable for smooth, flamed, and bush-hammered stone surfaces
• Working load limit up to 380 kg: Depending on the selected vacuum pad size

Applications

• Unloading stone slabs from bridge saw tables
• Handling and repositioning cut workpieces in stone factories
• Lifting and tilting slabs for transport or installation
• Suitable for stone processing workshops and manufacturing environments

Usage Notes

• Ensure the material surface is clean, smooth, and non-porous
• Do not exceed the rated working load limit
• Always check battery level before operation
• Ensure vacuum pads are clean and properly installed
• Confirm the vacuum level reaches a safe operating range before lifting

Frequently Asked Questions (FAQ)

When is the vacuum lifter safe to lift materials?

The vacuum lifter is safe to operate only when the vacuum level reaches the required safe range (typically within the green zone on the gauge), the alarm system is inactive, and the pressure remains stable throughout the lifting process.

What is the optimal vacuum level for stable lifting?

The recommended vacuum level is between -64 kPa and -75 kPa to ensure strong suction and stable performance when handling stone slabs, glass panels, and other non-porous materials.

What should be checked before operating the vacuum lifter?

Before using the vacuum lifter, check the battery level, vacuum pad condition, and ensure all components are clean and functioning properly. This helps maintain safe and efficient lifting performance.
