Thiết Bị Nâng Đá Khối Chân Không Có Tay Cầm AVBLH380

Overview

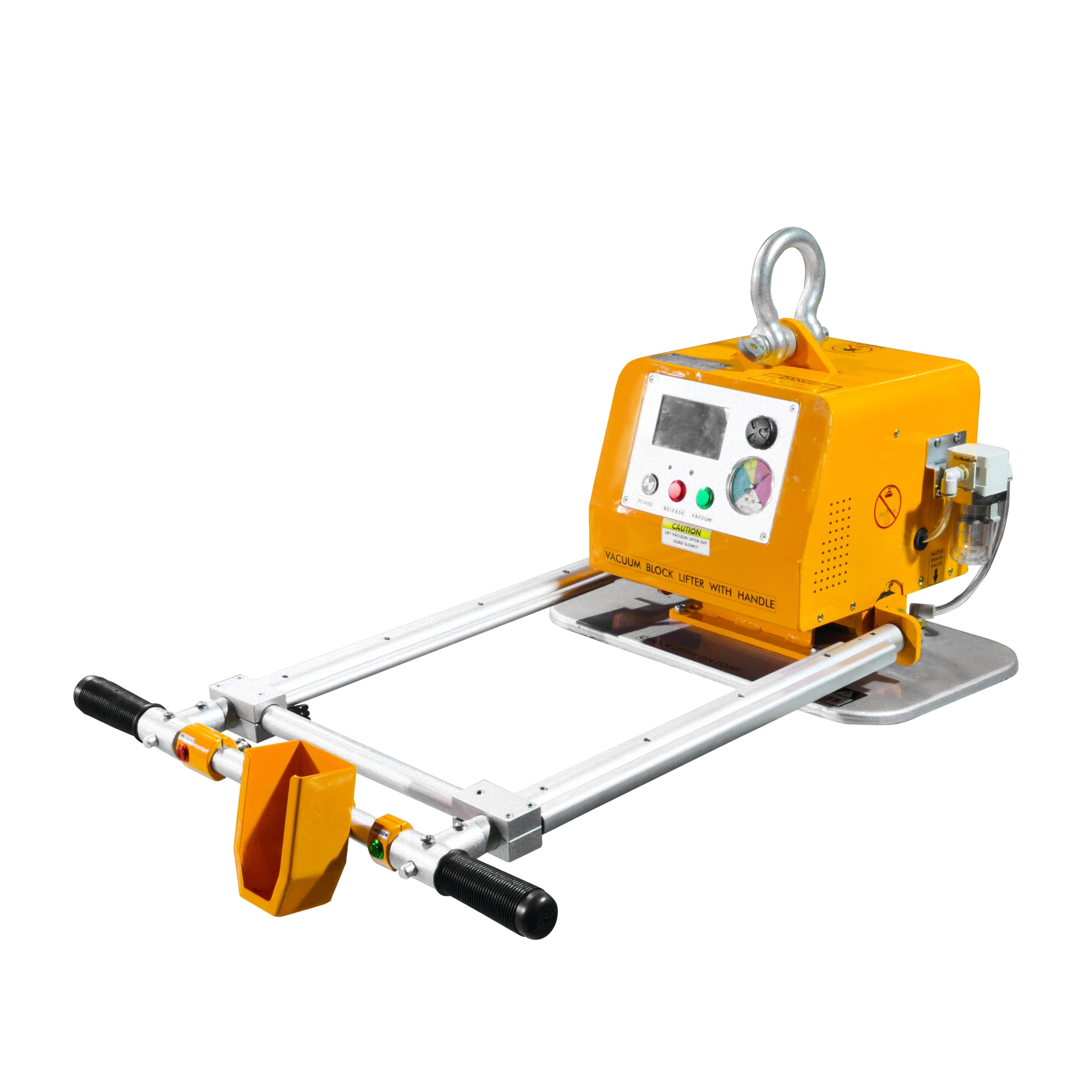

The Aardwolf Vacuum Block Lifter with Handle (AVBLH380) is designed for safe and efficient lifting of heavy materials such as stone and concrete, with a working load limit of up to 380 kg.

This vacuum lifter reduces manual handling effort while improving precision during material positioning and installation. Equipped with an automatic vacuum system and an ergonomic handle, the AVBLH380 allows operators to maintain better control throughout the lifting process.

With its flexible operation, the unit can be used manually or in combination with forklifts and cranes, making it suitable for a wide range of job site and factory applications.

How It Works

The lifter uses a vacuum pump to generate suction through the vacuum pad. Once the required vacuum level is reached, the material is securely held for lifting and movement.

Operators can control the suction and release functions via buttons located on the handle or on the unit body.

Key Features

• Automatic vacuum system: Ensures safe operation with real-time audio and visual alerts
• Dual control system: Handle-mounted or body-mounted controls for flexible operation
• Quick pad replacement: Allows fast and easy maintenance
• Visual monitor and alarm system: Displays vacuum levels and provides safety warnings
• Ergonomic integrated handle: Supports comfortable and safe manual handling
• Flexible operation: Can be used manually or with forklifts and cranes
• Working load limit up to 380 kg: Using a 500 × 300 mm vacuum pad
• 24V – 12Ah battery system: Provides stable power for lifting operations

Applications

• Lifting and moving stone and concrete blocks
• Handling heavy materials in factories and construction sites
• Installing large slabs and panels
• Suitable for stone processing, construction, and manufacturing industries

Usage Notes

• Ensure the material surface is clean and non-porous
• Do not exceed the maximum working load limit
• Check battery status before operation
• Ensure the vacuum pad is properly installed and undamaged
• Confirm the vacuum level reaches a safe operating range before lifting

Frequently Asked Questions (FAQ)

What materials can the AVBLH380 vacuum lifter handle?

It is suitable for stone, concrete, and other non-porous materials with a sealed surface.

Can the lifter be used with forklifts or cranes?

Yes. The AVBLH380 supports multiple lifting methods, including manual handling, forklift use, and crane attachment.

Can the vacuum pad be replaced?

Yes. The lifter allows quick pad replacement to suit different material sizes and load requirements.
