General

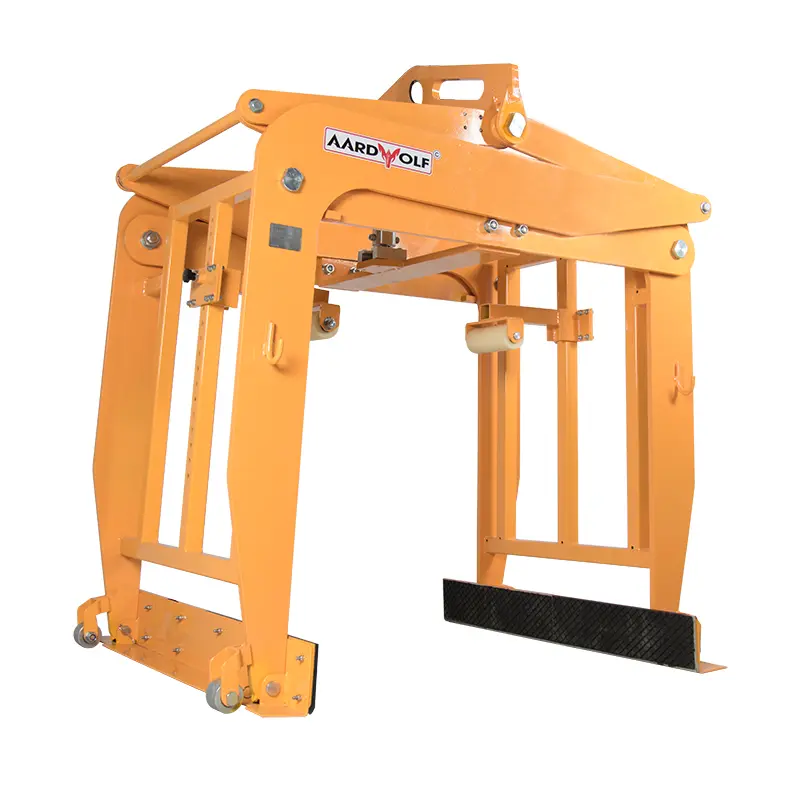

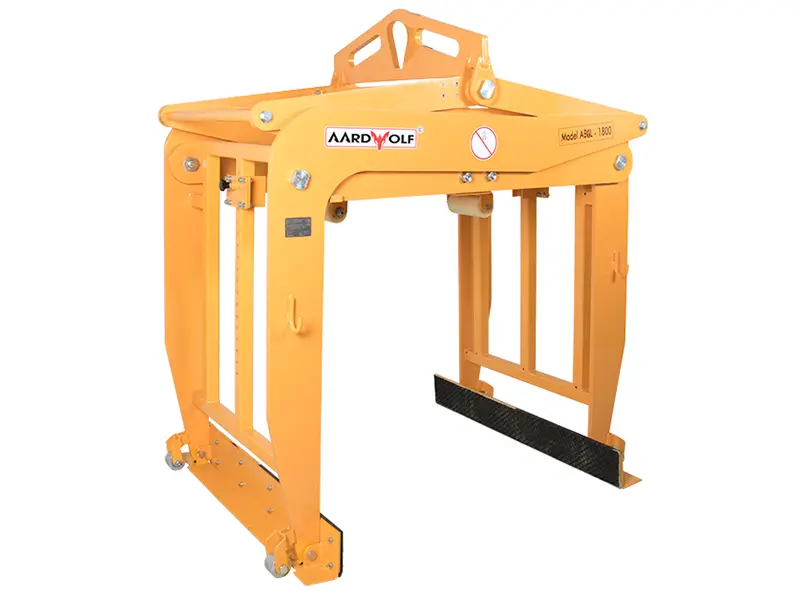

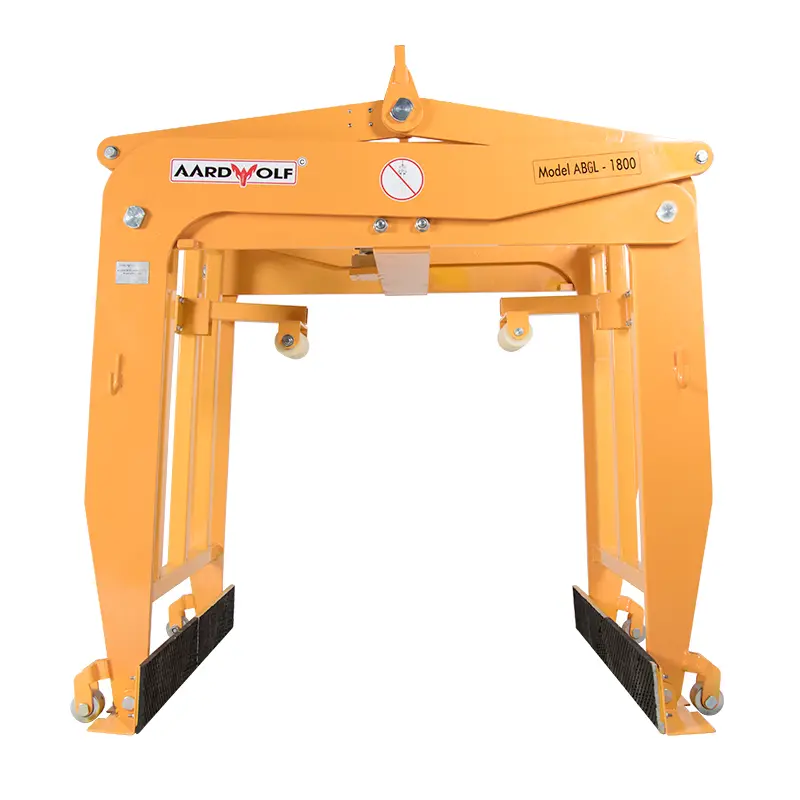

The Brick Grab Lifters are made for mechanical or hydraulic lifting, moving, and placing various bricks in size without the need to hook up additional hydraulics or electrical for it to operate. Clamping jaws are equipped with durable rubber to hold tight materials. This device can be used with different types of cranes, such as overhead cranes, mobile cranes, truck-mounted cranes, or forklifts in the factory or construction sites. The load must not be palletized and can be handled from inconvenient positions with limited space. The grab has adjustable plunge depth – convenient when you handle loads of varying heights.
Features
Fully automatic mechanism or hydraulic power.
Adjustable plunge depth for different pack sizes.
Profiled hooks for attachments.
Time-saving, labor-saving, and cost-saving.

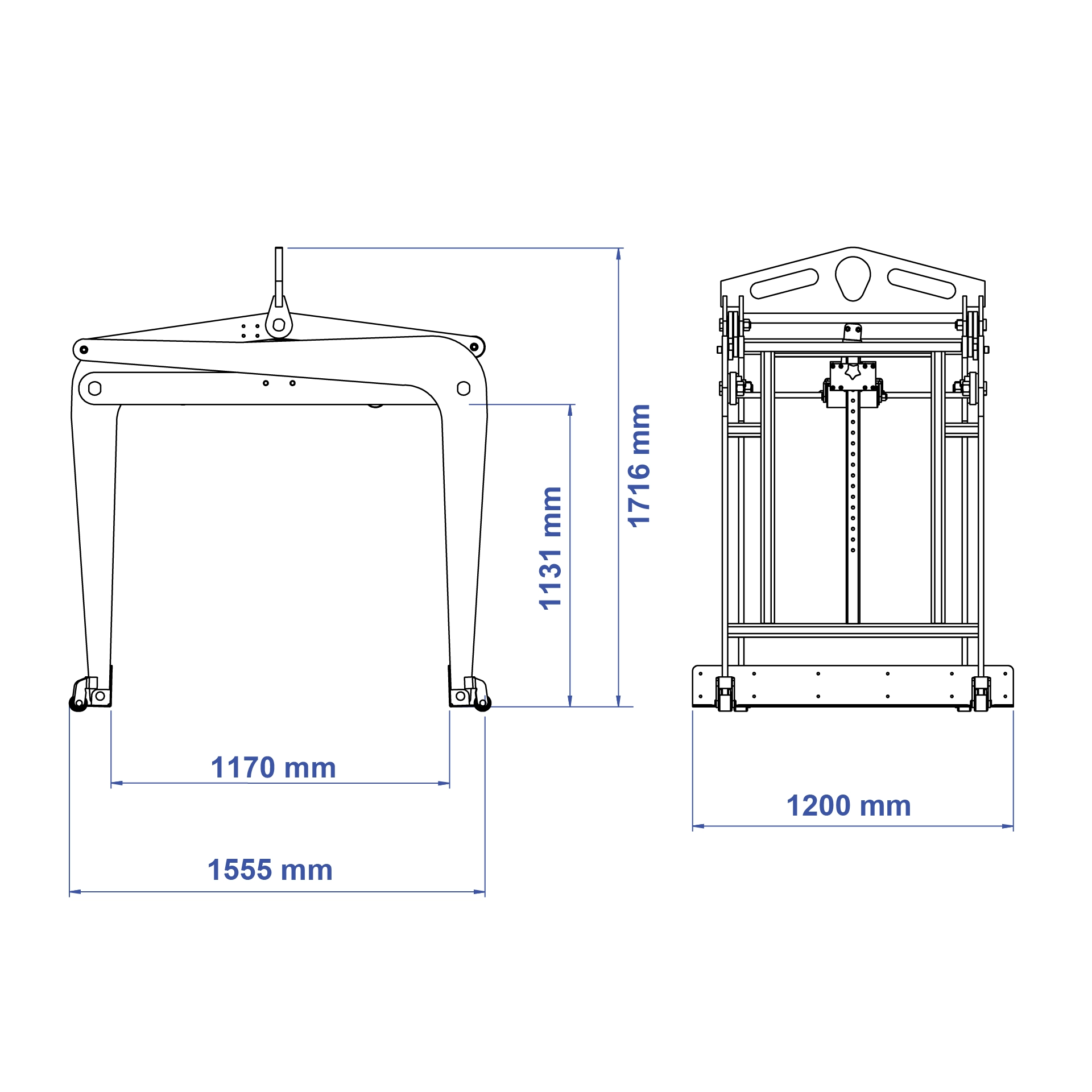

Specifications
| Item | Value |
|---|---|
| Grip range | 800 – 1100 mm |
| Pad length | 1200 mm |
| Internal height | 1100 mm |
| Working load limit | 1800 kg |
| Net weight | 590 kg |
| Gross weight | 610 kg |
| Packaging dimensions | L.1550 × W.1270 × H.2110 mm |

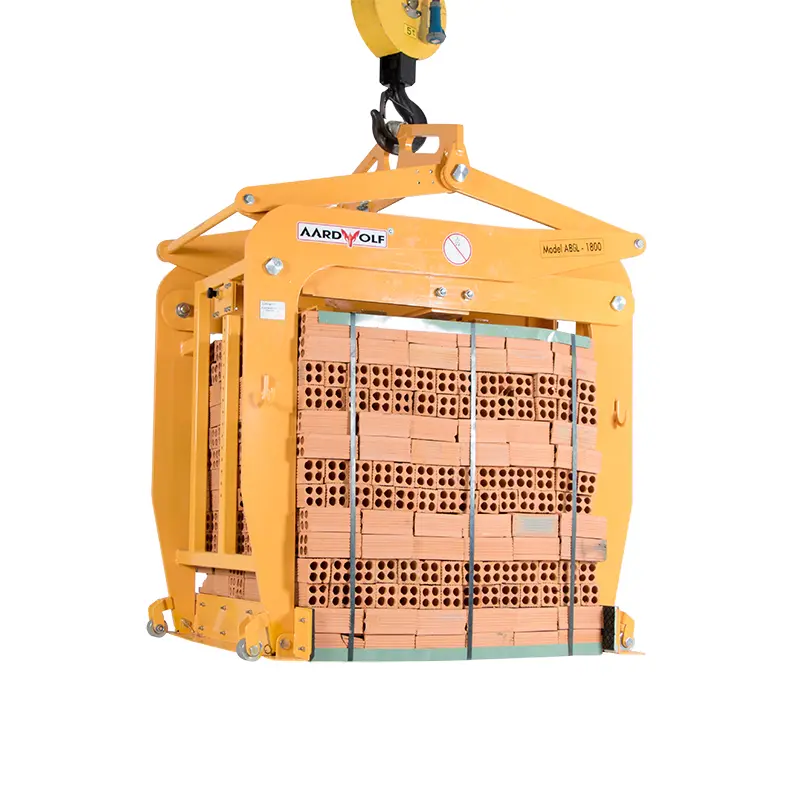

Equipment in action
See the product at work
