เครื่องยกสูญญากาศ AVLP3-3750

Overview

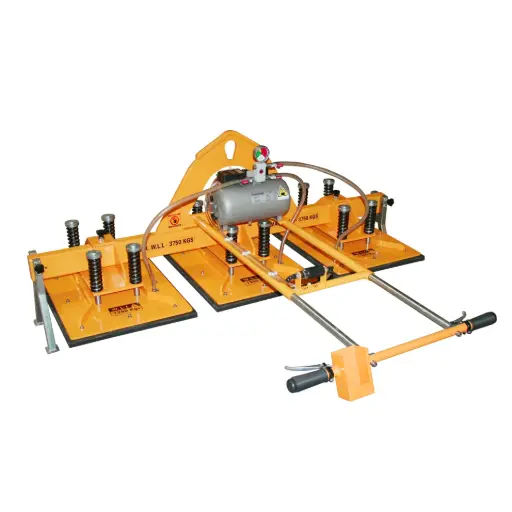

The AVLP3-3750 vacuum lifter is a heavy-duty pneumatic lifting equipment specifically designed for handling precast concrete panels, while also capable of lifting smooth or rough materials such as granite and marble slabs.

With its robust construction and high-performance vacuum system, this vacuum lifter is ideal for industrial applications requiring high load capacity and operational stability.

The compressed air-powered system ensures consistent performance, making it suitable for demanding and continuous working environments.

How It Works

The lifter uses compressed air to generate vacuum suction through multiple vacuum pads, allowing it to securely grip the surface of the material.

Once the required vacuum pressure is reached, the system enables stable lifting and safe transportation of heavy materials during handling operations.

Key Features

• High lifting capacity up to 3750 kg: Suitable for heavy-duty material handling applications
• Optimized for concrete and heavy materials: Ideal for precast concrete panels and large stone slabs
• 8 large vacuum pads configuration: Increases contact area and improves lifting stability
• Stainless steel vacuum tank: Maintains suction in case of sudden power loss
• Battery-powered alarm system: Provides both audio and visual warnings when pressure is unsafe
• ON/OFF slide valve control: Allows quick attachment and release of materials
• Heavy-duty industrial structure: Ensures durability in harsh working environments

Applications

• Lifting and installing precast concrete panels
• Handling heavy materials on construction sites
• Moving large granite and marble slabs
• Suitable for construction, manufacturing, and industrial material handling

Usage Notes

• Ensure the contact surface is clean and suitable (smooth or slightly rough)
• Do not exceed the rated lifting capacity
• Always check the vacuum system before operation
• Ensure even distribution of vacuum pads on the material surface

Frequently Asked Questions (FAQ)

What materials can the AVLP3-3750 vacuum lifter handle?

It is primarily designed for precast concrete panels, but can also be used for granite, marble, and similar heavy materials.

Why does it use an 8-pad configuration?

The multiple pads help distribute suction force evenly, ensuring better stability and safety when lifting heavy loads.

How does the safety system work?

The system combines a vacuum tank to maintain suction and a battery-powered alarm system that alerts operators when pressure conditions become unsafe.
