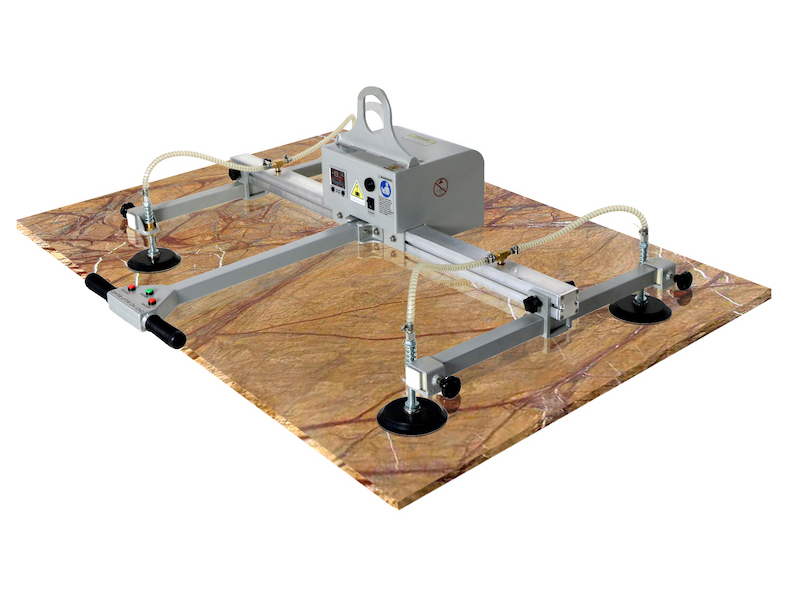

Vacuum Lifter AVLB4

Overview

The Vacuum Lifter AVLB4 is a battery-powered vacuum lifting device designed for handling glass, metal sheets, panels, and other flat surface materials safely and efficiently. Equipped with four suction pads and a stable vacuum system, the AVLB4 can lift loads up to 160kg.

Its lightweight aluminium construction and built-in vacuum loss alarm system make it ideal for factories, metal fabrication workshops, glass installation projects, and construction sites across Singapore.

How the AVLB4 Works

Place the lifter on the material surface and press the Vacuum button to activate the vacuum system. Once the suction pads securely attach to the material, the load can be lifted using a hoist or crane.

After positioning the material, press the Release buttons to safely release the load. The alarm system provides audio and visual alerts if vacuum pressure drops during operation.

Key Features

• Stable Four-Pad Vacuum System: Four suction pads provide balanced lifting and secure gripping for flat materials.
• Audio and Visual Safety Alarm: Alerts operators immediately if vacuum pressure decreases.
• Lightweight Aluminium Construction: Durable yet lightweight for easier handling and transport.
• Simple Push-Button Controls: Quick and easy operation using Vacuum and Release buttons.
• Battery-Powered Operation: Works without direct power connection, allowing flexible on-site use.
• Compact Design: Easy to connect with hoists and lifting systems in different working environments.

Applications

Suitable for:

• Glass installation
• Tempered glass handling
• Metal sheet lifting
• Panel handling
• Manufacturing facilities
• Metal fabrication workshops
• Construction projects

Key Benefits

• Improved Workplace Safety: Stable vacuum holding system helps reduce the risk of dropping materials.
• Reduced Manual Labour: Makes lifting and moving heavy materials easier and more efficient.
• Faster Material Handling: Quick vacuum attachment and release improve workflow efficiency.
• Flexible Operation: Suitable for both factory and on-site applications.

Frequently Asked Questions (FAQ)

What lifting direction is the AVLB4 designed for?

The AVLB4 is designed for horizontal lifting applications.

How long can the unit operate continuously?

The lifter can operate continuously for approximately 2.5 hours on a full charge.

How long does charging take?

The battery charging time is approximately 2 hours.

Does the lifter require direct power during operation?

No. The AVLB4 operates using a built-in 12V rechargeable battery.
