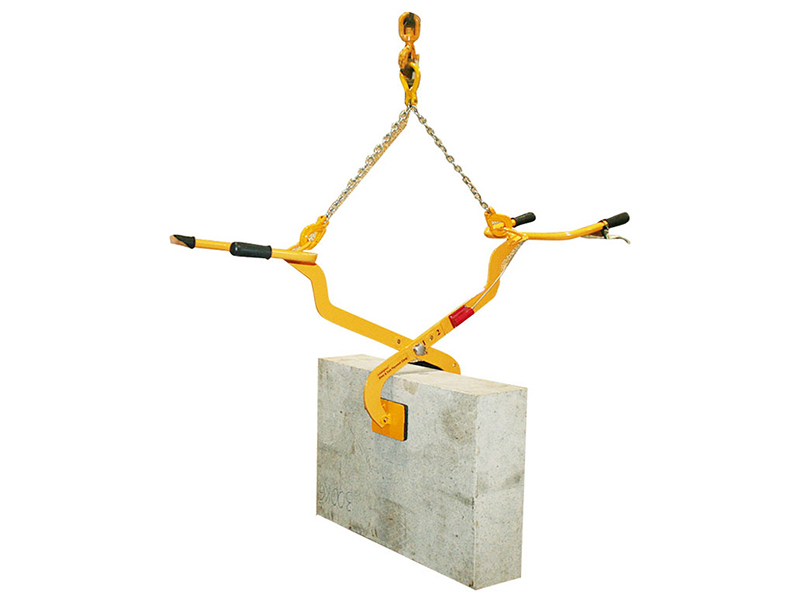

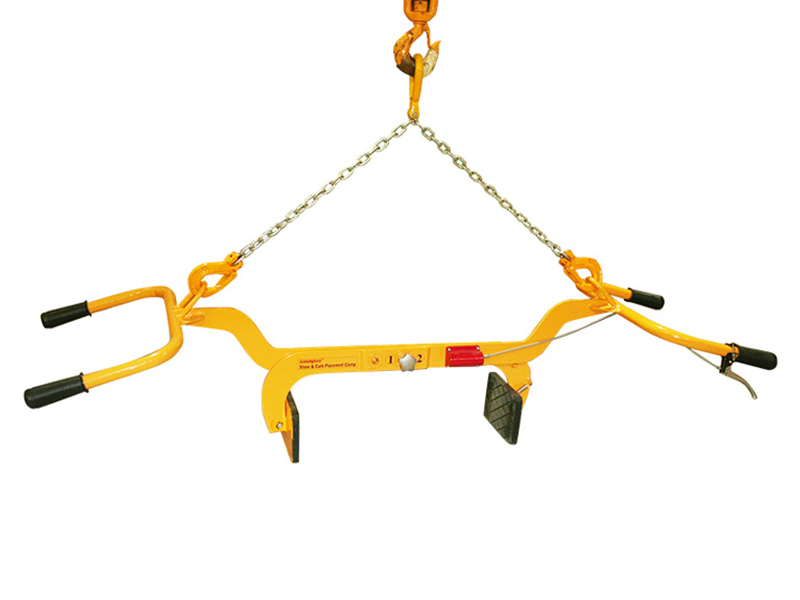

Stone & Curb Placement Clamp  SCC04

Overview

The Aardwolf SCC04 is a manual two-man stone and curb placement clamp, designed for handling and installing concrete curbs, blocks, and stone elements on site.

With a 100–500 mm grip range and a 200 kg working load limit (WLL), this curb placement clamp allows two operators to lift and position materials safely and with better control during installation.

How It Works

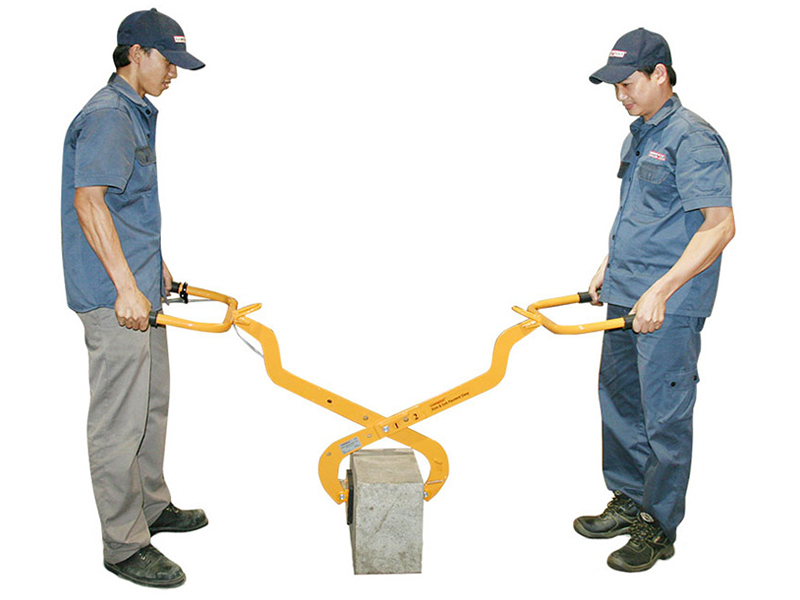

The clamp is positioned onto the material, and two operators lift it using the handles on both sides.

During lifting, the clamping force is generated mechanically, allowing the material to be held securely for controlled placement.

Key Features

• Two-man lifting design: Enables balanced handling by two operators
• Manual clamping mechanism: Clamping force is generated through lifting action
• Grip range (100–500 mm): Suitable for different curb and block sizes
• Ergonomic handles: Improve control and reduce operator strain
• Robust steel construction: Built for repeated use on construction sites

Applications

• Installing concrete curbs and kerbstones
• Handling stone blocks and paving elements
• Manual placement of construction materials
• Use as a stone and curb placement clamp for site installation

Usage Notes

• Ensure the load is securely gripped before lifting
• Do not exceed the rated load capacity
• Always use two operators during operation
• Maintain proper lifting posture to reduce strain

Frequently Asked Questions

What type of tool is the SCC04?

The SCC04 is a manual two-man lifting clamp designed for stone and curb placement.

What materials is it suitable for?

It is suitable for concrete curbs, stone blocks, and similar construction materials within the rated capacity.

What ensures stable handling?

Stable handling depends on proper grip engagement and coordinated lifting between operators.
