Combo Swivel-Chain-Lifting Lug SSC1.5T

Overview

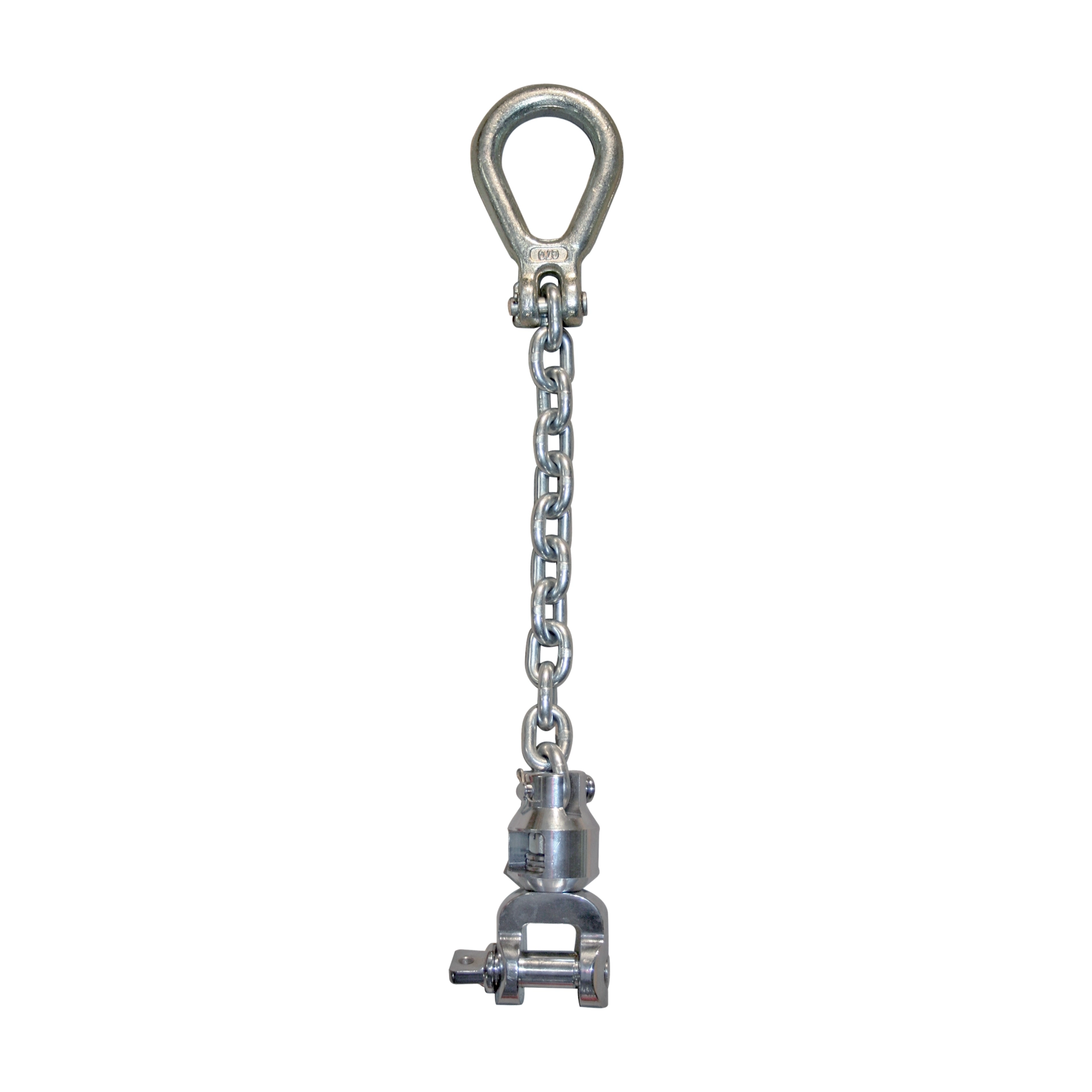

The SSC1.5T Combo Swivel Chain Lifting Lug is designed for use with the Aardwolf Lifters. Combines with a lifting lug, chain, and swivel shackle into a single unit. The purpose of a chain between a lifting clamp and a hook or teeth on a backhoe is to create a flexible, articulating connection that allows the operator to lift, transport, and precisely place heavy materials like stone while keeping the load safely suspended below the machinery.

Why and how the SSC1.5T Combo Swivel Chain Lifting Lug is used:

• Reach and Clearance: The chain drops the lifting clamp lower than the backhoe bucket’s teeth or hook, allowing the backhoe to lower materials in deep or narrow trenches without forcing the heavy backhoe arm itself into the hole.

• Precise Placement: When the clamp and chain are rigged, workers can adjust and swivel the load for highly precise positioning of the material.

• Prevents crushing of the clamp: When the clamp is fixed with limited space between itself and the boom, the clamp can be crushed and damaged between the load and the boom if the boom is accidently lowered with force onto the clamp.

Made from high-grade forged aluminium, it provides strength, durability, and reliable performance in lifting operations.

Key Features

• Swivel connection: Allows flexible movement between lifting equipment and load

• Integrated chain system: Improves positioning and handling efficiency

• Durable construction: High-grade forged aluminium for long-term use

• Surface protection: Helps reduce slab damage on uneven surfaces

Applications

• Connecting lifting clamps to cranes or hoisting systems

• Handling stone slabs and construction materials

• Use in workshops, warehouses, and construction sites
