Electric Vacuum Lifters - AEVLP4-500
General

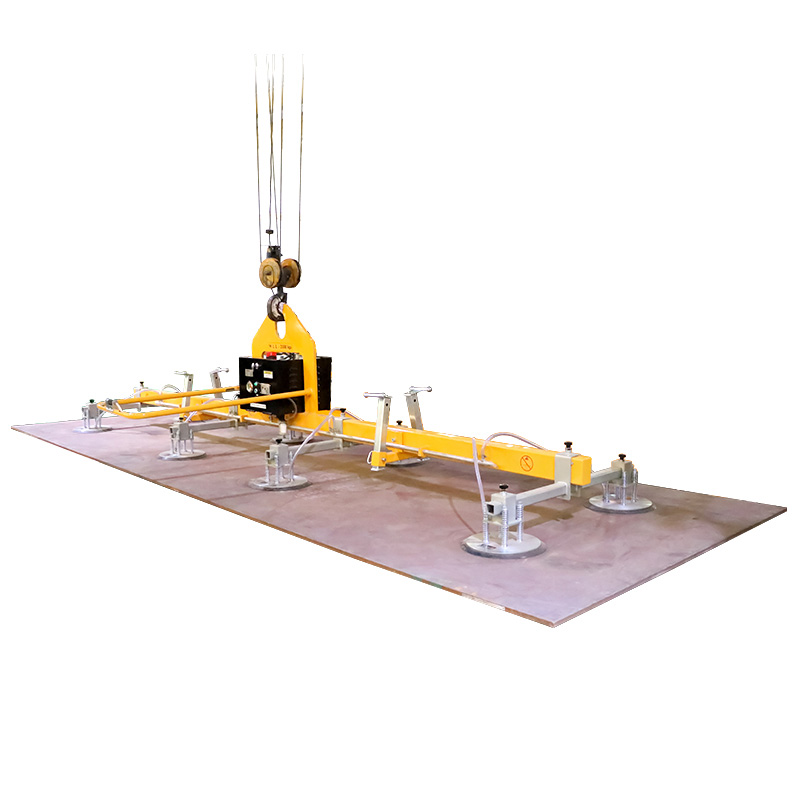

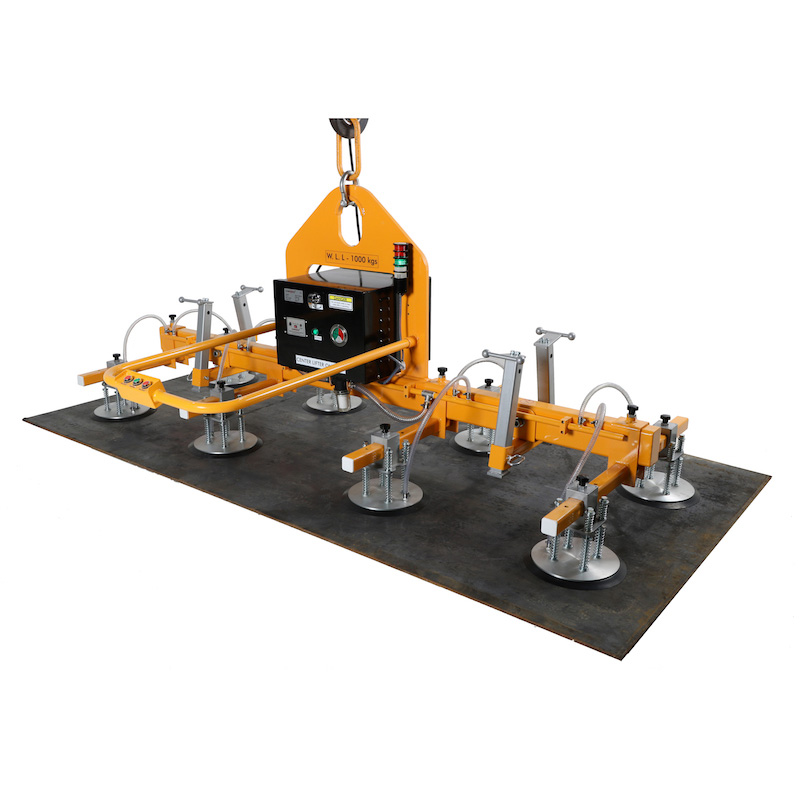

The Aardwolf Electric Vacuum Lifters are designed for lifting flat, non-porous materials such as metal sheets. It uses an electric vacuum pump and is available in configurations with 4 or 8 pads. The main beam and vacuum pad positions are adjustable to accommodate different sheet sizes. Depending on the model, the system supports loads of up to 2000 kg and sheet dimensions up to 6000 × 1800 mm.
Each unit is equipped with a pressure monitoring system, automatic vacuum pump reactivation in case of pressure loss, and audio-visual alerts for safe operation. It is suitable for use in workshops and industrial environments.
Features
- Adjustable Beam and Pad Positions: Suitable for handling different sheet sizes.
- Lifting Capacities: Available models support 500 kg, 1000 kg, or 2000 kg loads.
- Safety Alerts: Audio-visual indicators notify the operator when pressure drops.
- Automatic Pump Activation: The system automatically restarts the vacuum pump if pressure drops below the safe level.
- Battery-Powered Alarm: Runs on a 3.7V LiPo battery, up to 7 hours continuous use and 720 hours standby.
- Electric Motor: 3-phase 380V power input with vacuum flow rates up to 8.7 m³/h, depending on model.
Specifications

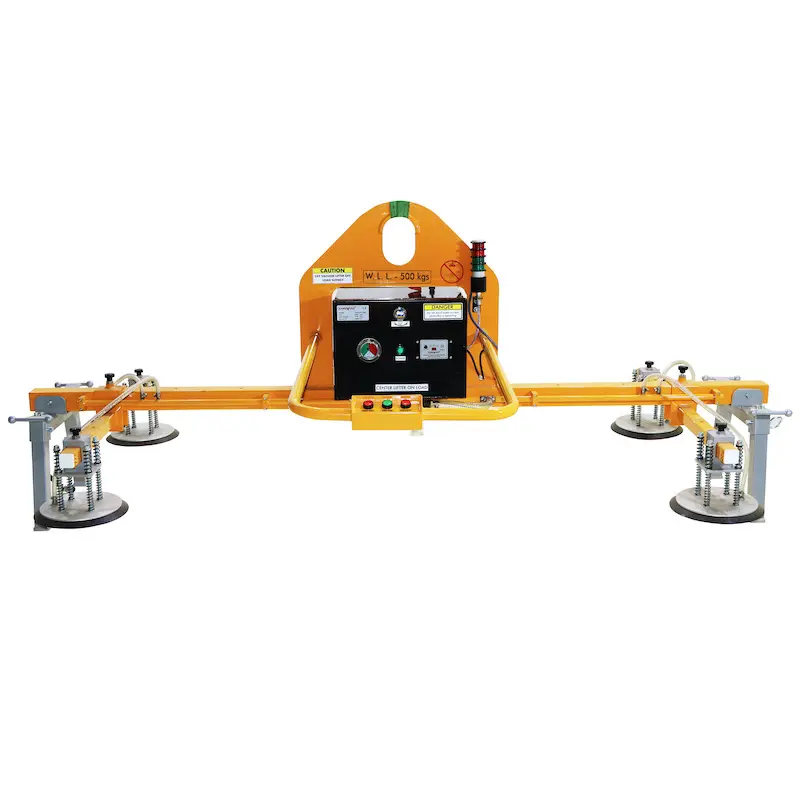

AEVLP4-500 | Metric |
| Number of pads | 4 |
| Pad diameter | 300 mm |
| Working load limit | 500 kg |
| Net weight | 192 kg |
| Gross weight | 289 kg |
| Packaging dimensions | L.2880xW.570xH.1220 mm |
- Battery information for the alarm system
| Power supply | 3.7V LiPo battery |
| Battery capacity | 2000 mAh x 1 |
| Adapter | DC 5V-1A |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | - |
- Motor information
| Input supply | AC 380-3Phase 50/60Hz |
| Vacuum flow rate | 4.1/4.7 m3/hour |
